# MathMap Examples

You can find lots of examples of MathMap generated images at the very interesting and well-written page about visualizing complex functions by Hans Lundmark.

Some guys at Stanford have used MathMap to recreate M.C. Escher's "Print Gallery" with a photograph.

Alexander Heide has used MathMap to transform x-ray images of crystals.

Tom Rathborne has used MathMap to generate some very unusual Mandelbrot fractal images.

Laurent Despeyroux has a page with GIMP tutorials which make use of MathMap to create interesting effects.

The following are examples of MathMap expressions, together with their effect on two images. Variants of all of these expression are included as examples in the plug-in.

The original images:

```filter wave (image in)
in(xy+xy:[sin(y/6),sin(x/6)]*3)
end
```

```filter slice (image in)
in(xy+xy:[5*sign(cos(y/6)),5*sign(cos(x/6))])
end
```

```filter mercator (image in)
in(xy*xy:[cos(pi/2/Y*y),1])
end
```

```filter pond (image in)
in(ra+ra:[sin(r/3)*3,0])
end
```

```filter twirl (image in)
in(ra+ra:[0,-(r/R-1)*pi/5])
end
```

```filter jitter (image in)
in(ra:[r,a+a%0.14-0.07])
end
```

```filter fisheye (image in)
in(ra:[r*r/R,a])
end
```

The result of this expression depends on the gradient and on the value of t.
```filter colorify (image in, gradient grad)
end
```

The result of this expression depends on the setting of the curve.
```filter gamma (image in, curve gamma)
p=in(xy);
rgbaColor(gamma(red(p)),gamma(green(p)),gamma(blue(p)),alpha(p))
end
```

As does this (there are actually two curves here and one slider).
```unit filter curve_bend (unit image in, float alpha: 0-6.28318530,
curve lower, curve upper)
dir = xy:[cos(alpha),sin(alpha)];
ndir = xy:[-dir[1],dir[0]];
p = xy / m2x2:[dir[0],-ndir[0],
dir[1],-ndir[1]];
pt = dir * p[0];
vec = xy - pt;
dist = -p[1];
pos = 0.5 + p[0] / 2;
lo = 1 / (lower(pos) * 4 - 2);
up = 1 / (upper(pos) * 4 - 2);
f = lo + ((dist + 1) / 2) * (up - lo);
in(pt + ndir * f)
end
```

```filter scatter (image in)
in(xy+xy:[rand(-3,3),rand(-3,3)])
end
```

```filter darts (image in)
p=in(xy);
p=if inintv((a-(pi/20))%(pi/5),0,(pi/10)) then p else -p+1 end;
if inintv(r%80,68,80) then p else -p+1 end
end
```

```filter sphere (image in)
# Thanks to Herbert Poetzl
rd=0.9*min(X,Y);
if r>rd then
rgba:[0,0,0,1]
else
alpha=-(5/3)*pi; beta=(1/3)*pi; gamma=t*pi*2;
sa=sin(alpha);
sb=sin(beta);
ca=cos(alpha);
cb=cos(beta);
theta=a;
phi=acos(r/rd);
x0=cos(theta)*cos(phi);
y0=sin(theta)*cos(phi);
z0=sin(phi);
x1=ca*x0+sa*y0;
z1=-sa*-sb*x0+ca*-sb*y0+cb*z0;
if z1 >= 0 || 1 then
y1=cb*-sa*x0+cb*ca*y0+sb*z0
else
z1=z1-2*cb*z0;
y1=cb*-sa*x0+cb*ca*y0-sb*z0
end;
theta1=atan(-x1/y1)+(if y1>0 then pi/2 else 3*pi/2 end);
phi1=asin(z1);
in(xy:[((theta1*2+gamma)%(pi*2)-pi)/pi*X,-phi1/(pi/2)*Y])
end
end
```

This is an example of combining MathMaps alpha operation with layers. The background is the image of Elisa. The second layer is the grid, which has been MathMapped with the following expression:
```filter alpha_spiral (image in)
in(xy)*rgba:[1,1,1,0]+rgba:[0,0,0,sin((r-a*6)/6+t*2*pi)*0.5+0.5]
end
```

```filter moire1 ()
abs(rgba:[sin(r/4)+sin(15*a),sin(r/3.5)+sin(17*a),sin(r/3)+sin(19*a),2])*0.5
end
```

```filter moire2 ()
grayColor(sin(x*y/180*pi)*0.5+0.5)
end
```

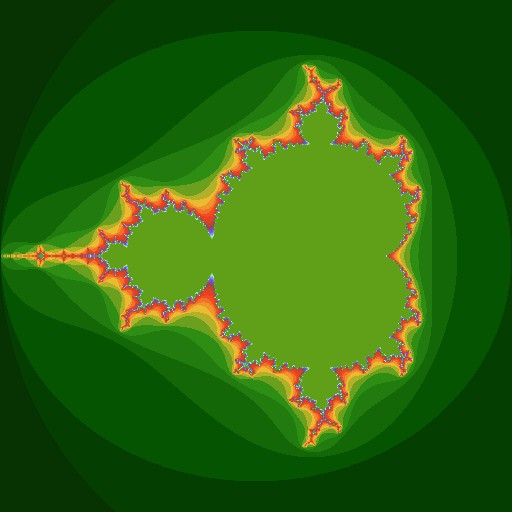

This is a simple Mandelbrot fractal, colorized by a gradient. For more complex Mandelbrot images rendered with MathMap, see Tom Rathborne's page
```filter mandelbrot (gradient coloration)
p=ri:(xy/xy:[X,X]*1.5-xy:[0.5,0]);
c=ri:[0,0];
iter=0;
while abs(c)<2 && iter<31
do
c=c*c+p;
iter=iter+1
end;
coloration(iter/32)
end
```
